What are the 7 QC tools For Manufacturing Anyone working in quality assurance or process improvement needs to be able to rapidly and effectively detect and handle quality-related concerns. However, statistical quality control can often become too complicated and unmanageable for the typical person, which makes scaling up quality assurance and training more challenging. The seven quality tools, often known as the 7 QC tools, were first created in the 1950s by Japanese engineering professor Kaoru Ishikawa to aid employees from a variety of technical backgrounds in implementing efficient quality control procedures. For employees without technical backgrounds, statistical quality control training courses were complicated and frightening at the time. Because of this, it was challenging to implement efficient quality control across all operations. Businesses discovered that cutting training down to seven high-quality tools or user-friendly fundamentals improved performance at scale.

What are the 7 QC tools For Manufacturing, These quality management tools are still regarded as the best available today for resolving a wide range of quality-related problems. They are often used in tandem with the most popular process improvement approaches available today, such as Lean management, TQM, various Six Sigma phases, and continuous improvement procedures.

Fortunately, engineers have found that by adhering to a few essential principles, the majority of quality control issues may be resolved. These principles are referred to as the “seven basic tools of quality.”

No matter what industry you service, you can simply manage the quality of your process or product if you have these fundamental quality tools in your toolbox.

Find templates and learn about these quality control tools so you can get started utilizing them right away.

Where were the high-quality tools made

The seven quality tools, often known as the 7 QC tools, were first created in the 1950s by Japanese engineering professor Kaoru Ishikawa to aid employees from a variety of technical backgrounds in implementing efficient quality control procedures.

For employees without technical backgrounds, statistical quality control training courses were complicated and frightening at the time. Because of this, it was challenging to implement efficient quality control across all operations. Businesses discovered that cutting training down to seven high-quality tools or user-friendly fundamentals improved performance at scale.

What are the 7 QC tools For Manufacturing Industry

These quality management tools are still regarded as the best available today for resolving a wide range of quality-related problems. They are often used in tandem with the most popular process improvement approaches available today, such as Lean management, TQM, various Six Sigma phases, and continuous improvement procedures. Quality experts refer to these seven fundamental quality tools by a variety of names; they were initially highlighted by Tokyo University engineering professor Kaoru Ishikawa, who is considered the founder of “quality circles.” Once you master these tools, you’ll also have a name for them as you begin your quality journey: essential We wish to verify if all necessary information has been gathered and procedures have been followed in a manufacturing process scenario. Defects can be identified based on their type, location, and other factors. To put it another way, we could say that to count the occurrence of issues. It can take many different forms that are applied with a specific goal in mind. For example, it could take the shape of checklists that maintain track of the occurrence of events and enumerate all the significant ones in a tabular style. This aids in our comprehension of the procedure and allows us to monitor defect trends and their root causes.

7 quality tools

1. Check sheet

2.Fishbone Diagram

3.Histogram

4.Control Chart

5.Stratification

6.Flowchart Diagram

7.Pareto Chart

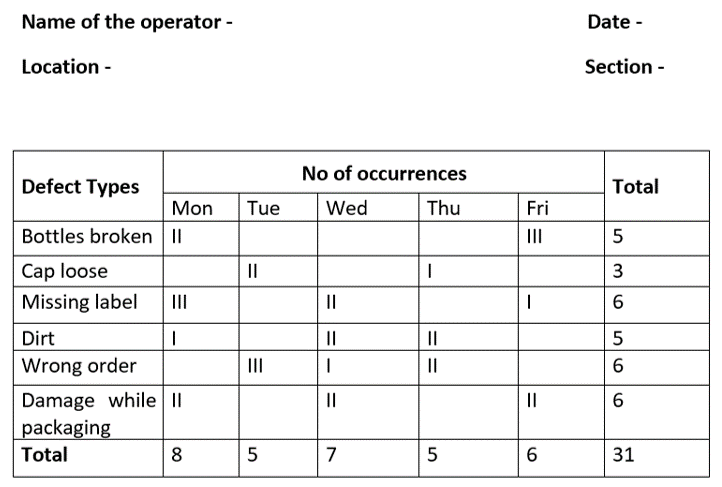

1. Check sheet (or tally sheet)

Check sheets are useful for gathering both qualitative and quantitative data. They might be referred to as tally sheets when they are utilized to gather quantitative data. Check sheets are used to gather data in the form of check or tally marks that show the frequency of a specific value. This helps you identify faults or flaws in your product or process, as well as defect trends and even the reasons of individual problems, rapidly. Check sheets make it easier to record preliminary frequency distribution data while measuring out operations because of their straightforward setup and readable images. When producing bar graphs, histograms, and other high-quality tools, this specific image can be utilized as a first data collection tool.

In essence, a check sheet is a type of paper used to arrange and gather data in a process that occurs in real time or at the site where the data is produced. We may have gathered quantitative or qualitative data. The check sheet is also known as a tally sheet when the data is quantitative.
To get the most of it, it is crucial that we know the form to utilize for the intended goal. Here are a few examples of how check sheets are used

Probability distribution of a process: to obtain a process’s dispersion in visual form. It is a type of frequency distribution tally sheet that is used to make a histogram and assess a process’s perspective.

Identification of defect type: All of the defect categories and lists can be categorized here in the form of a frequency distribution table. After that, we may plot a bar chart to see which defect kinds are most common.

Identification of defect by location: No matter where a defect appears, we can find it. It consists of maps, layouts, or drawings that indicate the locations of the flaws.

2.Fishbone Diagram

Also called: cause-and-effect diagram, Ishikawa diagram

Changes include: desired-result fishbone, reverse fishbone diagram, process fishbone, time-delay fishbone, CEDAC (cause-and-effect diagram with the inclusion of cards), cause enumeration diagram, and time-delay fishbone.

Among the seven fundamental quality tools is the cause analysis tool. The fishbone graphic shows a wide range of potential reasons why an impact or issue could exist. It is useful for organizing brainstorming sessions. Ideas are instantly sorted into helpful categories. Reason and Consequence Diagrams, commonly referred to as fishbone diagrams, are useful for determining the possible sources of an effect or an issue. Effective brainstorming not only helps organize ideas into categories, but it also identifies potential areas of growth.1.

• When to use a fishbone diagram
• Fishbone diagram procedure
• Fishbone diagram example
• Create a fishbone diagram
• Fishbone diagram resources

3.Histogram

What is a Histogram In 7 QC Tools The frequency distribution of a piece of data indicates the frequency at which each distinct value appears. The most popular graph for displaying frequency distributions is a histogram. Although it resembles a bar chart quite a bit, there are several significant variations. This useful instrument for gathering and analyzing data is regarded as one of the seven fundamental quality tools. What are the 7 QC tools For Manufacturing, In an attempt to manage quality, quality specialists are frequently entrusted with studying and understanding the behavior of various data categories.What are the 7 QC tools For Manufacturing , This is where the histogram and other quality control instruments are useful. When dividing the frequency of your data into categories like age, days of the week, physical measurements, or any other category that can be reported in numerical or chronological order, histograms are especially useful. A histogram is a graphic that shows how quantitative data is distributed. Karl Pearson was the one who originally used the word. The first stage in creating a histogram is to “bin” (sometimes called “bucket”) the data range, which is done by dividing the whole range of values into a number of intervals and then counting the number of values that fall into each interval. Typically, the bins are given as successive, non-overlapping intervals of a variable. The bins, or intervals, are next to each other and usually have the same size, however this is not necessary

4.Control Chart

What are the 7 QC tools For Manufacturing, A What Is Control Chart In 7 QC Tools is graph used to examine how a process changes over time is called a control chart. The data are shown chronologically. There are three lines on a control chart: an upper line for the upper control limit, a lower line for the lower control limit, and a middle line for the average. Based on past data, these lines are established. You can determine if process variation is consistent (under control) or unexpected (out of control, influenced by unique causes of variation) by comparing the present data to these lines. This adaptable instrument for gathering and analyzing data is one of the seven fundamental quality tools and is utilized by numerous sectors.

What are the 7 QC tools For Manufacturing, Control charts are used to identify processes that are out of control and require adjustment, as well as those that are stable and under control. Any procedure will inevitably have some variance. Control charts encourage timely responses to exceptional variation and help prevent overreactions to regular process variability. What are the 7 QC tools For Manufacturing,  Shewhart charts are another name for control charts.

5.Stratification

What is Stratification In 7 QC Tool is Sorting information, individuals, and items into discrete tiers or groupings is known as stratification. It is a method that is applied in conjunction with additional data analysis instruments. It can be challenging to understand the meaning of data when it has been combined from various sources or classifications. What are the 7 QC tools For Manufacturing, This data gathering and analysis method, which is regarded as one of the seven fundamental quality tools, divides the data so that patterns may be observed. A collection of maps, charts, and diagrams intended to gather, process, and display data for various industries and applications is known as a data collecting and analysis tool. Numerous tools and approaches have been created for application in almost every sector of the economy, from research teams and data gathering businesses to manufacturing and quality control.

In the context of the seven quality control techniques, stratification is particularly noteworthy as a crucial analytical method.

What are the 7 QC tools For Manufacturing, To improve operational efficiency and decision-making processes, C-level executives must comprehend what stratification in seven quality control tools means. Essentially, stratification is the process of dividing data into discrete layers or strata. This helps businesses spot trends, patterns, and underlying problems that might not be visible when examining aggregated data.

What are the 7 QC tools For Manufacturing, This approach makes it possible to conduct a more thorough and nuanced study, which enables focused interventions and advancements. Stratification’s use in breaking down large, complicated data sets into smaller, more digestible chunks is demonstrated by the way it is applied inside the framework of the 7 QC tools.

6.Flowchart Diagram

What are the 7 QC tools For Manufacturing, One of the seven fundamental quality  tools, a flowchart is a graphical representation that shows and describes the steps in a process. In the context of the  Project Management Professional (PMP) test, it is an invaluable resource for comprehending and evaluating project processes. A sequence of actions intended to accomplish particular goals is called a process. It has decision branches, inputs, and outputs. When it comes to illustrating the sequential or parallel sequence of events in a process, flowcharts are an invaluable tool.

Flowchart:- is a diagram that shows the structure and direction of the phases in a process using visual symbols. It is employed to comprehend the several processes involved as well as the order in which they are carried out.

What are the 7 QC tools For Manufacturing, A flow chart is an appropriate tool to utilize when you are unfamiliar with a process and need clarification on the steps involved and the order in which they are happening.

7.Pareto Chart

Pareto Chart is The length of the bars represents frequency or cost (time or money), and the longest and shortest bars are arranged on the left and right. This way, the chart clearly states which conditions are more important. What are the 7 QC tools For Manufacturing, Therefore the analysis tool is considered one of the seven values.

What are the 7 QC tools For Manufacturing, A Pareto chart is a bar chart arranged from left to right, highest to lowest frequency. The height of the bars reflects the frequency or impact of problems. Pareto charts help the quality improvement team focus on the most important areas of improvement.

What are the 7 QC tools For Manufacturing, A Pareto chart can be either a simple bar chart (in descending order) or a more sophisticated dual Y-axis chart, with an 80% line and a cumulative percentage line. Nominal data (horizontal axis categorical data) appears on the Pareto chart. In other words, it is data grouped by name. This particular data is non-numeric, so its average or median cannot be taken. Categories often show problem areas or causes of a problem in a process.
